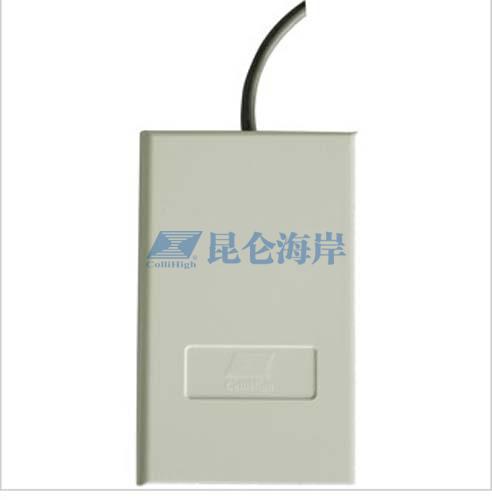

JQAW-3 series CO2 sensor adopts American GE two-channel high quality CO2 module design and dual channel nondispersive infrared principle(NDIR), gold-plated optical element,long time working assure the stability and reliability of the CO2 measurement.with 4 mA ~ 20 mA current, and 0V~ 5V, 0V~ 10V voltage output ,it's an indoor environment measurement transducer.

Sensor, transmit integrated design, suitable for indoor environment measurement of CO2.It also can applied to a high concentration occasion in a long term.

GE dual channel CO2 module, have calibration function

Nice appearance, simple installation

Stable performance and long service life

Power supply	DC24V（22V～26V）
Max current	80mA (DC 24V)
Range	0ppm~2000ppm、0ppm~5000ppm（can order)0ppm~10000ppm，0ppm~50000ppm）
Accurancy	± (40 ppm +3%F•S)(22℃)
Temperature drift	±0.2F•S/℃
Stability	≤2%F•S
Nonlinear	≤1%F•S(22℃)
Pressure drift	0.13% of reading/mm Hg
Signal refresh time	4s
Respond time	≤2min reach to 90% of changes,
Preheat time	≤2min(constant output)；≤10min（max accurancy）
Working environment	0℃~50℃；0%RH~95%RH（ non-condensation）
Output signal	voltage output：0V~5V；0V~10V（dead zone is 30mV）
	current output：4mA~20mA
Load capacity	voltage output：output impedance250Ω
	current output：≤500Ω
Installation way	wall mounted：the gourd hole or screws fixed on the wall
Shell	ABSwhite113mm ×72mm × 37mm
