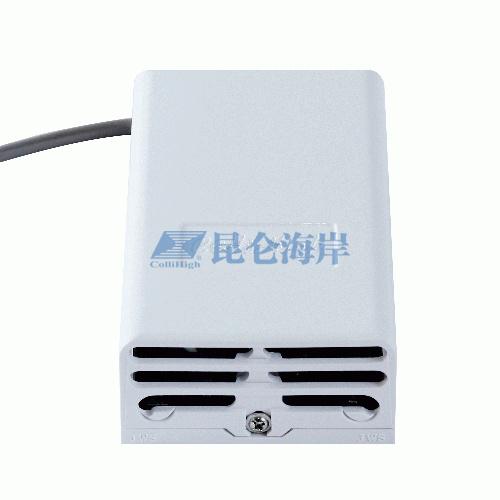

JWSL-3 Economical Temperature & Humidity Transmitter

The product model:JWSL-3

Manufacturers:Collihigh

The production:China

Attention index:4014

Summary
Parameters
Selection

Introduction

Sensor, transmitter integrated design and big screen display is suitable for hvac indoor environment temperature and humidity measurement. It uses special temperature compensation circuit and linearized processing circuit. This product has reliable performance, long service life, fast response speed. A variety of models meet the requirement of RoHS lead-free

Characteristic

Low price

Low drift

Fast response

Small volume

Easy installation,

Stable performance

Long service life

many kind of analog output signal

many kind of models meet RoHS lead-free requirements

CE certification

Parameters

DC power supply	Current output：DC 24V （22V~26V）
	Voltage output：DC 24V （12V~24V）
	Net output：DC 24V （12V~24V）
AC power supply	AC 24V（18V~24V）
Max current	Two wires system output 40mA（DC 24V）
	Three wires system output 50mA（DC 24V）
	Voltage output 20mA（DC 24V）
	Net output 20mA（DC 24V）
Accuracy	Humidity:± 3％RH(5％RH～95％RH,25℃)
Accuracy	Temperature:± 0.5℃(25℃)
Working environment	Humidity:0%RH～100%RH（no condensation）
Working environment	Temperature:-10℃～60℃
Range	Humidity:0%RH～100%RH
Range	Temperature0℃～50℃
Response time	≤15s（1m/sair speed）
Long-term stability	Humidity≤ 1%RH/y
Long-term stability	Temperature≤ 0.1℃/y
Output signal	Current output:4～20mA
	Voltage output:0～5V
	Net output:RS485/RS232
Load capacity	Voltage output:output impedance≤ 250Ω
Load capacity	Current output:≤ 500Ω
Installation	Wall mounted
Shell	ABS white 113mmx72mmx37mm
